FUJI Electric – Standard type magnetic contactor, magnetic starter (Model: SC and SW series)

4
1244
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

The SC series is a range of long service-life and high-performance contactors. SC-03 to SC-N3 smallframe contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters.
Field modifications are quick and easy.
Type SC-N6 and above contactors come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to prevent burnt coils and contact chattering by voltage fluctuation.

Small frame contactors with new functions join the SC series. The SC line up, based on high technology, now extends from the SC-03 to the SC-N16. The SC series contactors have such options as additional auxiliary contact blocks and operation counter unit with snap-on fittings, and coil surge suppressors. Quick and easy modification on site. FUJI SC series (SC-N6 to N16) contactors have been developed and manufactured with our most advanced electronic technologies.
They employ an electronically-controlled SUPER MAGNET provided with a built-in IC, which enhances their performance and reliability.
The SUPER MAGNET is based on an “AC-input, DC-operated concept“, thus allowing the coil to be energized by both AC and DC input. Moreover, once closed, sealed current is controlled by switching circuit. perimts a great reduction in power consumption – a cost-effective feature.
The SC-N1 to SC-N5A do not have the SUPER MAGNET.
These contactors feature compact size, arc extinguishing mechanisms with a high breaking efficiency, low power consumption, easy operation, and ratings up to 660 volts.

Design features

Ratings

Auxiliary contact ratings

Performance data

SC and SW series Standard type SC-03,SC-0

Dimensions  SC-03,SC-0

SC and SW series Standard type SC-03,SC-0

Dimensions SC-03,SC-0

SC and SW series Standard type SC-05

Dimensions SC-05

SC and SW series Standard type SC-05

Dimensions SC-05

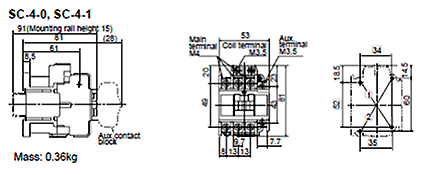

SC and SW series Standard type SC-4-0,SC-4-1

Dimensions  SC-4-0,SC-4-1

SC and SW series Standard type
SC-4-0,SC-4-1

Wiring Diagrams SC-4-0,SC-4-1

SC and SW series Standard type SC-5-1

Dimensions SC-5-1

SC and SW series Standard type SC-5-1

Wiring Diagrams SC-5-1

SC and SW series Standard type SC-5-1

Dimensions SC-5-1

SC and SW series Standard type SC-5-1

Wiring Diagrams SC-5-1

SC and SW series Standard type SC-N1,SC-N2

Dimensions SC-N1,SC-N2

SC and SW series Standard type SC-N2S,SC-N3

Dimensions SC-N2S,SC-N3

SC and SW series Standard type SC-N4

Dimensions SC-N4

SC and SW series Standard type SC-N5A

Dimensions SC-N5A

SC and SW series Standard type SC-N6

Dimensions SC-N6

SC and SW series Standard type SC-N7

Dimensions SC-N7

SC and SW series Standard type SC-N8,SC-N10

Dimensions SC-N8,SC-N10

SC and SW series Standard type SC-N11,SC-N12

Dimensions SC-N11,SC-N12

SC and SW series Standard type SC-N14

Dimensions SC-N14

SC and SW series Standard type SC-N16

Dimensions SC-N16

SC and SW series Standard type SC-N1to SC-N16

Dimensions SC-N1to SC-N16

SC and SW series Standard type SW-03/3H,SW-0/3H

Dimensions SW-03/3H,SW-0/3H

SC and SW series Standard type
SW-03/3H,SW-0/3H

Dimensions SW-03/3H,SW-0/3H

SC and SW series SW-05/3H
Standard type

Dimensions SW-05/3H

SC and SW series Standard type
SW-05/3H

Dimensions WiringDiagrams SW-05/3H

SC and SW series Standard type SW-4-0/3H,SW-4-1/3H

Dimensions SW-4-0/3H,SW-4-1/3H

SC and SW series Standard type
SW-4-0/3H,SW-4-1/3H

Wiring Diagrams SW-4-0/3H,SW-4-1/3H

SC and SW series Standard type SW-5-1/3H

Dimensions SW-5-1/3H

SC and SW series Standard type SW-5-1/3H

Wiring Diagrams SW-5-1/3H

SC and SW series Standard type SW-5-1/3H

Dimensions SW-5-1/3H

SC and SW series Standard type SW-5-1/3H

Wiring Diagrams SW-5-1/3H

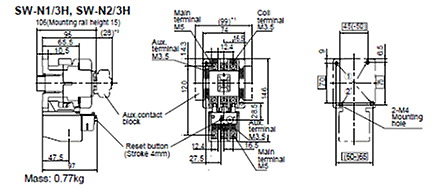

SC and SW series Standard type SW-N1/3H,SW-N2/3H

Dimensions SW-N1/3H,SW-N2/3H

SC and SW series Standard type SW-N1/3H,SW-N2/3H

Dimensions SW-N1/3H,SW-N2/3H

SC and SW series Standard type SW-N4/3H

Dimensions SW-N4/3H

SC and SW series Standard type SW-N5A/3H

Dimensions SW-N5A/3H

SC and SW series Standard type SW-N6/3H

Dimensions SW-N6/3H

SC and SW series Standard type SW-N7/3H

Dimensions SW-N8/3H

SC and SW series Standard type SW-N8/3H

Dimensions SW-N8/3H

SC and SW series Standard type
SW-N1/3H,SW-N8/3H

Wiring Diagrams SW-N1/3H,SW-N8/3H

SC and SW series Standard type SW-N10/3H

Dimensions SW-N10/3H

SC and SW series Standard type SW-N11/3H,SW-N12/3H

Dimensions SW-N11/3H,SW-N12/3H

SC and SW series Standard type SW-N14/3H

Dimensions SW-N14/3H

SC and SW series Standard type
SW-N10/3H to SW-N14/3H

Wiring Diagrams SW-N10/3H to SW-N14/3H

Characteristic curves TR series (TOR)

Characteristic curves

Characteristic curves TK series (TOR)

Characteristic curves

Types and Ratings (TOR)
