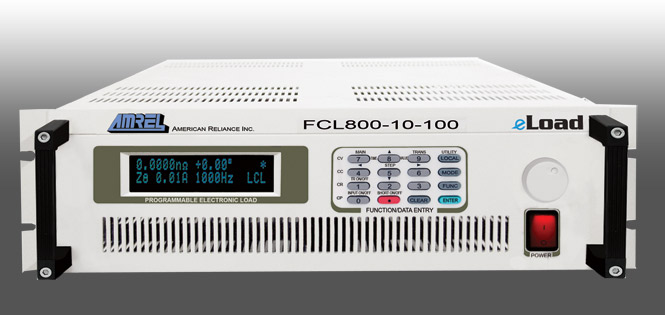

 FCL SERIES OF PROGRAMMABLE LOADS FOR FUEL CELL TESTING (200W-1.5kW)

AMREL’s Integrated Fuel Cell Load “FCL” Series is the ideal all-in-one solution that packages a booster supply for true “0-volt at high-current” operations. The FCL also has an embedded FRA for impedance measurement/EIS, and a full featured high-speed dynamic dc load in an ultra-compact 3U (5.25”) air-cooled package. AMREL’s FCL offers the industry’shighest current rating of 200Adc, as well as custom-tailored voltage, current and power ratings.

You will discover a wide range of options in AMREL’s FCL Series of fuel cell programmable loads.  If you can’t find what you need, FCL models are capable of being custom-tailored to meet your application requirements.

____________________________________________________________________________________________

FCL Series Markets and Applications

• Fuel Cells
• • • • • •
Single Cell and Short Stack Fuel Cell Characterization, Break-in and


• Testing Applications
• • • • •
Gstat Impedance Measurement (EIS & AC Modulation)
• • • • • Polarization Curve Data Capture (CV & CC Control)
• • • • • Durability
• • • • • Lifetime Tests

• Performance/Design Characterization

Exceptional Features and Benefits include:

 Embedded FRA (Frequency Response Analyzer) Without the Hassles of External Cables
• Built-in Booster Power Supply to Test Down to 0Vdc at Full Operating Current
• Fully Integrated 200W, 400W, 800W and 1.5kW Air-cooled Electronic
eLoad
• Impedance Measurement Software Without the Costs of Purchasing Additional Software
• CC/CV/CR/CP Operating Modes to Meet Demanding Application Specific Requirements
• Dynamic Operation Up to 20kHz Provides Accurate Impedance Measurements
• Dynamic Profile Loading Via Voltage and Current Sweeps for Polarization Curves, Durability/Lifetime Tests,
• Simulate Real-world Applications and Other Dynamic Test Requirements
• LabVIEW & LabWindows Drivers, Virtual Panel & SCPI Commands for Simple ATE Integration
• The One-box Solution for Testing Electrical Specs, Validating Performance Targets and Evaluating the
• Impedance  Losses for Fuel Cells
• Widest Model Selection-10Vdc/20Vdc/30Vdc FCL Rated at 100 or 200Amps and Custom-tailored Models Available

Closed-case Calibration
With the eLoad line, there’s no longer a need to send your electronic load back to the factory for calibration or remove dozens of screws to reach a potentiometer.  Simply follow the AMREL calibration routine from the front panel and you should be back up and running in a very short period of time (some electronic test equipment needed).  This will virtually eliminate downtime and eradicate the annual cost associated with shipping your eLoad back to the factory for calibration.

Individual FET Protection
To ensure the reliability of the FCL Series, AMREL’s design includes individual FET protection.  A programmable electronic load may contain many FETs in parallel, which can create a cascading failure if one of them was to short out.  AMREL’s eLoad programmable electronic load design isolates failures so other components will not be affected or stressed, increasing the system’s level of protection against catastrophic failure. With individual FET protection, the MTTR is reduced and the electronic load quickly returns to full operation.

Customization
AMREL’s outstanding engineering team can provide customizations and modifications to any of the FCL air-cooled programmable loads.  AMREL’s customizations can range from a simple modification, such as a different front panel color, to a complete custom electro-mechanical design.

FCL XXX – YY – ZZZ and OPTIONS
EFU-L = Field Upgradeable Ethernet & USB Available*
XXX -POWER  |  YY – VOLTAGE  |  ZZZ – CURRENT
L=Low Frequency Option
UL=Ultra-low Current Range Option Available*
Series  Model #  Power (W)  Voltage (Vdc)  Current (Adc)  VMIN  at  IMAX  Size
(Height, Depth)
FCL Fuel Cell Electronic Loads FCL200-10-100 200W 10 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL200-20-100 200W 20 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL200-30-100 200W 30 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL400-10-100 400W 10 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL400-20-100 400W 20 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL400-30-100 400W 30 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL400-10-150 400W 10 150 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL400-20-150 400W 20 150 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL400-30-150 400W 30 150 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL800-10-100 800W 10 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL800-20-100 800W 20 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL800-30-100 800W 30 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL800-10-200 800W 10 200 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL800-20-200 800W 20 200 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL800-30-200 800W 30 200 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL1.5K-10-100 1.5kW 10 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL1.5K-20-100 1.5kW 20 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL1.5K-30-100 1.5kW 30 100 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL1.5K-10-200 1.5kW 10 200 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL1.5K-20-200 1.5kW 20 200 0V (5.25", 19.5")
FCL Fuel Cell Electronic Loads FCL1.5K-30-200 1.5kW 30 200 0V (5.25", 19.5")
Custom-tailored Ranges Available Voltage Range:10Vdc ~ 800Vdc Rating
Current Range:1Adc ~ 200Adc Rating
Power Range:60W ~ 800W Rating
