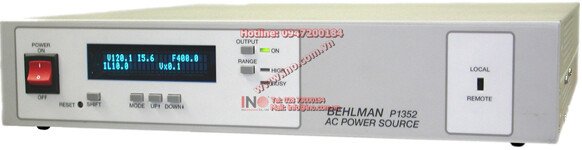

Behlman Electronics-AC Power Supply (Model P1352)

The P1352 incorporates a Direct Digital Synthesizer to create the waveform that produces the clean power of a linear supply with the high efficiency and small size of a switching supply.  Innovative protection circuitry provides for voltage fold back during overloads to maintain undistorted waveforms.  Power output is a maximum of 1350 VA with 100% of the output available into any power factor load. The P1352 provides for an adjustable output voltage of 0- 135 VRMS or 0 – 270 VRMS and a frequency range of 45 – 500 Hz.  The unit features push button controls to allow manual setting of Volts, Frequency, and Current Limit.   The 24 x 2 vacuum fluorescent display allows you to view output Volts, Frequency and Amps  plus measurements of Watts and Power Factor.  In addition, fault indications for Over Voltage, Over Current, Over Temperature, Constant Current and Short Circuit are displayed.  The  P1352 comes starndard with a RS232 interface for remote control and read back of all parameters.

Features

-120Vac In
 -Digital Display
 -Measures/Displays:
    V,F,I,Power Factor,Watts,Current Limit
 -45 – 500Hz out, constantly variable
 -Rear output terminal Block
 -RS232 included, standard
