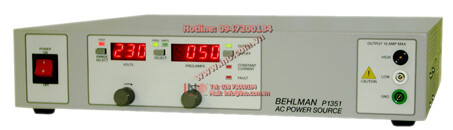

Behlman's P1351 AC Power Supply / Frequency Converter / Inverter delivers 1350 VA of clean, regulated AC power in a 3.5" high bench top unit, that easily converts to rack mount, for far less cost than competitive models. The P1351 can simulate any world wide utility as well as aircraft and shipboard power. Simply select the required frequency from 45 to 500 Hz, choose a voltage range either 0-135 VAC or 0-270 VAC, dial up your desired voltage, and you are ready to test. Options include Remote Control, using either IEEE-488, RS232 or 0-10 VDC and Extended Frequency range. The P1351 delivers all the quality features you have come to expect from Behlman; clean sinewave output with excellent line and load regulation, high efficiency and low harmonic distortion, in the industry's most compact size.
|
Mechanical Specifications |
|
|
Chassis:
|
High strength bench top chassis
|
|
Dimensions:
|
3.5" H x 17"W x 17.5"D
|
|
Weight:
|
39 lbs
|
|
Operating Temperature:
|
0 Deg C to +55 DegC
|
|
Input Connector:
|
IEC 320 C-20 receptacle with 6 foot line cord with NEMA 5 – 15 plug
|
|
Output Connection:
|
Three safety sockets on front panel and enclosed terminal block on rear
|
|
Air Flow from Internal Fans:
|
Input: Sides, Output: Rear |
Options
|
|
|
A:
|
Analog remote control: 0-10 Vdc for Volts & Frequency, contact closure for range & output
|
|
E:
|
Extended Frequency: 45 – 1000 Hz
|
|
I:
|
IEEE – 488, GPIB interface
|
|
IR:
|
RS232 interface
|
|
L:
|
Locking pots, Volts and Frequency
|
|
RM:
|
Rack Mount Kit |
