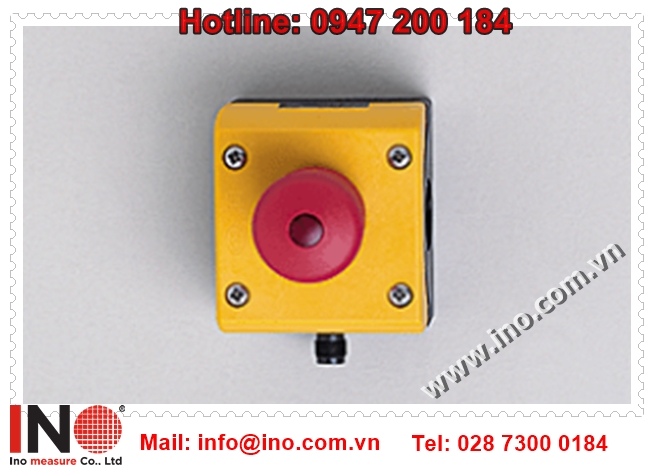

E-stop illuminated IP67 ( AC010S )

 Product characteristics

Illuminated E-STOP with integrated AS-i connection

fool-proof E-STOP to EN ISO 13850

Pull to reset

AS-i interface via AS-i flat cable IP 67

Complies with the requirements:
EN ISO 13849-1: Category 4 PL e
IEC 61508: SIL 3

 Electrical data

Electrical design

2 safe inputs / 1 unsafe LED output

Operating voltage [V]

26.5…31.6 DC

Total current consumption from AS-i [mA]

< 50

 Inputs

digital

Circuit

DC PNP

Sensor supply

AS-i

Voltage range [V]

> 20 V DC

Input current High/Low [mA]

4

Short-circuit proof

yes

 Outputs

LED output

1

Actuator supply

AS-i

Max. current load per output [mA]

10

Integrated watchdog

yes

Short-circuit proof

no

 Environment

Ambient temperature [°C]

-25…60

Protection

IP 67

 Safety classification

MIssion time TM [h]

87600

PFD

7.9 x 10E-6

PFH

1.8 x 10E-10 / h

 AS-i classification

AS-i version

2.1

Extended addressing mode possible

no

AS-i profile

S-7.B.E
