EMTEST-Continuous Wave Simulator (Model: EFT 500N2)

By
-
3
500
Vui lòng liên hệ với chúng tôi– chúng tôi sẽ liên hệ lại với khách hàng bằng điện thoại hoặc email.
Lưu ý: Tham khảo ý kiến của nhân viên INO sẽ giúp bạn tiết kiệm được thời gian và chi phí khi cần mua sắm. ​​Với sự tư vấn của chúng tôi, bạn sẽ không gặp khó khăn khi tìm hiểu về đặc tính của sản phẩm cần mua.

Highlights

  • Most compact equipment
  • Supports BCI testing as per various standard requirements
  • Basic frequency range 9kHz up to 400MHz
  • Extendable frequency range up to 1GHz
  • Built-in 100W class A amplifier up to 400MHz
  • Built-in RF switch to connect external amplifier
  • Built-in directional coupler
  • Built-in 3-channel power meter up to 1GHz

Application

Bulk current injection (BCI) testing

Bulk Current Injection (BCI) is a test procedure to proof the immunity to electrical disturbances by narrowband electromagnetic energy. The test signal is injected by means of a current injection probe physically being a current transformer laid around the wiring harness. Immunity tests are performed varying the level and the frequency of the injected test signal. The BCI test methode is widely known in the automotive industry as well as in the military/aircraft industry to test single components of a complex system.
The CWS 500N2 is designed to be used also for tests with CDNs and EM clamps for tests according to EN/IEC 61000-4-6 and related standards.
Benefits

BCI testing out of one single box – Easy, fast and reliable

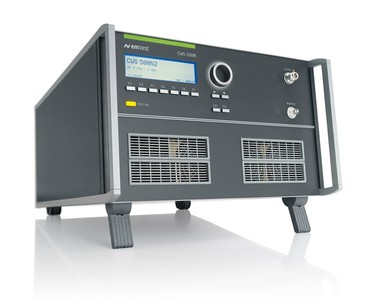

The CWS 500N2 is the first compact solution world-wide for testing rf conducted immunity to narrowband radiated electromagnetic energy. Apart from the injection probe and the monitoring probe everything is in the box; controller, signal generator, amplifier, directional coupler and rf power measurement of up to three signals in parallel. A built-in rf switch allows to connect and use any external amplifier to extend the system's capabilities.
Despite of being that compact the CWS 500N2 is a very flexible solution and can be used in the laboratory as well as everywhere in the field. Setting up a test is done very quickly with a minimum effort for cabling of the test equipment. There are only two leads; the rf power lead to the input of the injection probe and the return lead from the monitoring clamp. The user doesn't need to be an expert to run reliable and reproducible tests.
A powerful software tool including extensive reporting features and instrument driving capabilites masters the test procedures. All operation is done by means of icd.control software.

Resource & Download

 Datasheet

Lưu ý: Nếu một thiết bị nào đó không được liệt kê ở đây, điều đó không có nghĩa rằng chúng tôi không hỗ trợ được bạn về thiết bị đó. Hãy liên hệ với chúng tôi để biết danh sách đầy đủ về thiết bị mà chúng tôi có thể hỗ trợ và cung cấp.
INO: Bán, Báo giá, tư vấn mua sắm và cung cấp, tư vấn sản phẩm thay thế; tương đương, hướng dẫn sử dụng, giá…VNĐ, …USD info@ino.com.vn | Tel: (+84) 028 73000184 | EMTEST-Continuous Wave Simulator (Model: EFT 500N2).
