Highlights
- Burst module IEC/EN 61000-4-4 (up to 5.5 kV)
- Surge module IEC/EN 61000-4-5/-9 (up to 5 kV)
- TSurge module IEC/EN 61000-4-5 up (to 5 kV)
- PowerFail module IEC/EN 61000-4-8/-11/-29 (DC)
- Built-in single phase coupler 300 V/16 A
- Manual operation from front panel
- USB and GPIB-Bus for remote control
- Magnetic field tests with optional accessoires
- Monitor outputs for peak voltage and peak current
- Fail inputs
- External variac control 0-10 Vdc
- Control of external three-phase couplers
Application

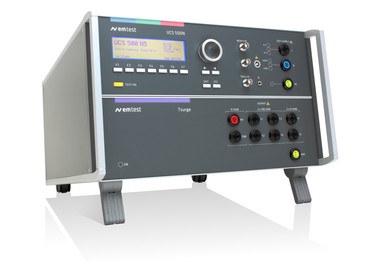

UCS 500N5T Series – Compact Tester for EFT/Burst, Surge, Telecom-Surge and Power Fail
The UCS 500N5T Series ultra-compact simulator is the most versatile tester to cover transient and power fail requirements according to international standards (basic and generic standards) and product/product family standards. The UCS 500N5T Series is the most economic solution for tests during development as well as for full-compliant immunity tests and CE Marking for single phase DUT with the ability to be extended for testing three-phase DUTs by means of an automatically controlled external coupling network up to 200 A.
EM TEST supplies a large range of accessories for the various applications such as magnetic field tests.
EM TEST supplies a large range of accessories for the various applications such as magnetic field tests.
Benefits
All in one – All what you need for your tests
The UCS 500N5T Series includes everything necessary to conduct fully compliant tests. The power mains supply for the controls and for the DUT is separate to render it more flexible to use with different DUT supply voltages.
The UCS 500N5T Series can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow to control an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.
The UCS 500N5T Series can be operated manually from the front panel or by remote via the built-in USB or GPIB interface. Fail inputs allow to control an ongoing test sequence based on the status of the DUT. Monitoring outputs (BNC) are offered for easy signal measurement and verification. Safety features such as interlock and warning lamp control are available.
