Highlights
- Standalone tester for 10/700us pulse as per EN/IEC 61000-4-5
- Test voltage up to 10kV
- Complies to ITU-T for enhanced level testing
- Complies to FCC part 68 (Surge B pulses)
- Built-in CDNs for 2-wire and 4-wire applications
- Manual operation
- Standard Test routines
- USB (optical link) and GPIB interface
Application

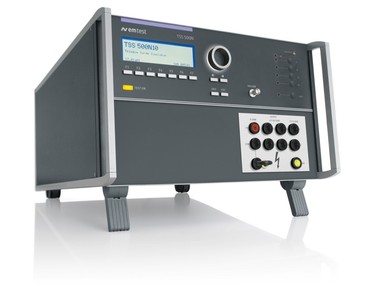

TSS 500N10 – 10kV Telecom Surge generator for 10/700us test pulse
Telecommunication networks are exposed to lightning events. Therefore telecommunication equipment being connected to the outside world need to have appropriate protection to show an acceptable immunity to surge transients in order not to fail in case of lightning events. Telecom Surge Simulators of the TSS 500N series are used to proof the immunity of telecommunications equipment.
The TSS 500N10 is used to perform tests as per EN/IEC 61000-4-5 and related standards and complies with the requirements of ITU-T and FCC 97-270 (part 68) for Surge B pulse. It also generates the Surge voltage pulse 1.2/50us as per EN/IEC 60950.
The TSS 500N10 is used to perform tests as per EN/IEC 61000-4-5 and related standards and complies with the requirements of ITU-T and FCC 97-270 (part 68) for Surge B pulse. It also generates the Surge voltage pulse 1.2/50us as per EN/IEC 60950.
Benefits
TSS 500N10 – 10/700us pulse generation and coupling networks in one box
The TSS 500N10 is a compact tester to generate the Telecom Surge pulses 10/700us and 9/720us as well as the 1.2/50us Voltage Surge pulse.
The TSS 500N10 is not just the pulse generator but it comes with the built-in coupling networks for 2-wire and 4-wire test applications. The outputs can directly be connected to the Telecom ports of the DUT. For testing Telecom lines EM TEST offers the appropriate coupling networks for 4-wire or 8-wire lines.
The TSS 500N10 is not just the pulse generator but it comes with the built-in coupling networks for 2-wire and 4-wire test applications. The outputs can directly be connected to the Telecom ports of the DUT. For testing Telecom lines EM TEST offers the appropriate coupling networks for 4-wire or 8-wire lines.
