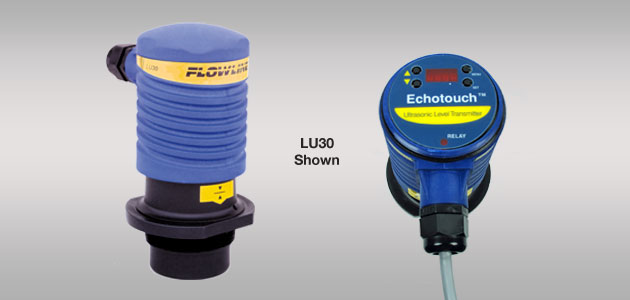

Flowline-EchoTouch® Ultrasonic Level Transmitter ( Model: LU30 )

Application:

The general purpose 3-wire ultrasonic level transmitter provides continuous level measurement up to 24.5' (7.4m) with a 4-20 mA signal output, and is configured via the integral push button display module. The level sensor has one 10A relay which can be configured on a single set point (high level alarm or low level alarm) or latched on two set points for automatic fill or empty with fail-safe logic. This non-contact liquid level sensor is well suited for corrosive, ultrapure, sticky or dirty liquids, and is widely selected for bulk storage and day tank level applications.
Features:

Level measurement up to 24.5' (7.4m) with 1 programmable relay

Configuration is simple via integral push button display module

LED digital display indicates level in inches or centimeters

Programmable relay for alarm or automatic fill-empty control

Polypropylene enclosure rated NEMA 4X with rugged PVDF transducer

Specifications:
Range:     6" to 24.5' (15cm to 7.4m)
Accuracy:     ± 0.25% of range
Resolution:     0.125" (3mm)
Dead band:     6" (15cm)
Beam width:     8° conical
Configuration:     Push button
Memory:     Non-volatile
Display type:     LED, 4-digit
Display units:     Inch or cm
LED indication:     Relay status
Supply voltage:     14-36 VDC
Consumption:     200mA maximum
Signal output:     4-20 mA, three-wire
Signal invert:     4-20 mA, 20-4 mA
Current flow:     Sourcing or sinking
Contact type:     (1) SPDT relay, latching
Contact rating:     250 VAC @ 10A
Contact logic:     Single point: alarm
Two point: latching
Contact fail-safe:     Reverts to safe state during
echo-loss
Process temp.:     F: -4° to 140°
C: -20° to 60°
Temp. comp.:     Automatic
Ambient temp.:     F: -40° to 140°
C: -40° to 60°
Pressure:     30 psi (2 bar) @25° C, derated @1.667 psi (.113 bar) per °C above 25° C.
Enclosure rating:     NEMA 4X (IP65)
Encl. material:     PP, UL94VO
Conduit entrance:     Single, 1/2" NPT
Cable length:     9" (22cm)
Cable type:     Power & signal: 3-conductor
Relay: 3-conductor
Cable jacket mat.:     Vinyl
Trans. material:     PVDF
Process mount:     2" NPT (2" G)
Mount gasket:     Viton®
Classification:     General purpose
Compliance:     CE
