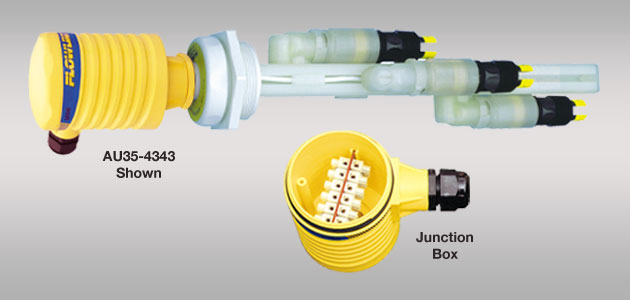

Flowline-Smart Trak™ with Compact Junction Box ( Model: AXXX )

Application:

The general purpose level switch package provides reliable, multi-point liquid level detection up to 10' (3m) with 1-4 adjustable level switch points and a compact junction box for integral wiring termination. Available in three level sensor technologies, select the sensor type based upon your application media. This PP liquid level switch package is widely applied in process, sump and day tank level applications for automatic filling or emptying with high level alarm and/or low level alarm.

Ultrasonic Level Sensor
Intrinsically safe – Broadly applied in chemicals, solvents, hydrocarbons and light weight oils

Vibration Level Sensor
General purpose – Applied in wastewater with light coating, crystalizing and foaming

Buoyancy Level Sensor
General purpose – Applied in clean water and non-coating chemicals

Features:

Rugged polypropylene multi-point level switch package for corrosive liquids

60VA relay or 15VA dry contact selectable NO or NC via wiring

Offered in 3 sensing technologies for broad application coverage: ultrasonic, vibration & buoyancy

Adjustable level switch cars enable sensor adjustment in the field

Polypropylene enclosure rated NEMA 4X with swivel base and terminal strip

Specifications:

Length:     8" to 10' (20cm to 3m)
Accuracy:     ± 1mm in water
Repeatability:     ± 0.5mm in water
Orientation:     ± 20° vertical
Switch points:     1-4 (field adjustable)
Supply voltage:     AVX6: N/A
AUX8: 12-36 VDC
AZX8: 12-30 VDC
Consumption:     AVX6: N/A
AUX8 / AZX8: 100 mA max.
Contact type:     AVX6: SPDT reed(s)
AUX8 / AZX8: SPST relay(s)
Contact rating:     AVX6: 15 VA, 0.25A max.
AUX8 / AZX8: 60 VA, 1A max.
Contact output:     Selectable NO / NC
Process temp.:     F: -40° to 176°
C: -40° to 80°
Ambient temp.:     F: -40° to 140°
C: -40° to 60°
Pressure:     Atmospheric
Enclosure rating:     NEMA 4X (IP65)
Enclosure mat.:     PP, UL94VO
Terminal strip:     12-pole, socket
Conduit entrance:     1/2" NPT
Wetted material:     PP (glass fill)
Process mount:     2" NPT (2" G)
Classification:     General purpose
Compliance:     CE
