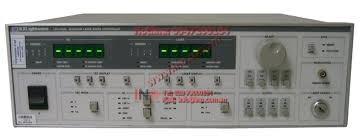

The LDC-3900 Modular Laser Diode Controller features four channels with eight isolated outputs for controlling multiple laser diodes. Modules include current sources with maximum outputs from 200mA to 8A, TE (thermoelectric) controller modules with up to 32W of power and voltage measurement, and controller modules with laser control from 200mA to 2A and integrated 12W TE control.
An independent power supply powers each channel, providing protection and stability for your laser diode. Every module incorporates low noise, high stability performance, and ILX Lightwaves unmatched laser diode protection topologies including independent current limits and laser diode shorting relays.
Remote communication through an IEEE/GPIB interface simplifies testing and control of multiple devices. LabVIEW® drivers are also available for any combination of mainframe and module.
- 4 Independent Channels with 8 isolated outputs
- Laser current source modules from 200mA to 8A
- Laser diode controller modules from 200mA to 2A with integrated 12W TEC
- 32W TEC only modules with voltage measurement
- TEC modules accept thermistor, IC, and RTD temperature sensors
- Standard GPIB/IEEE-488 interface
