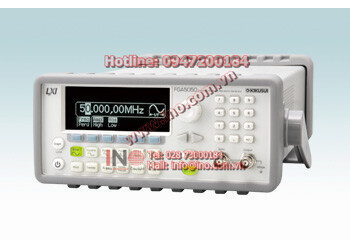

The FGA5050 is a function generator that equips with the arbitrary waveform function. In addition to Sine waveform, Square waveform, Ramp waveform of those custom waveform generation function, the FGA5050 offers to realize high precision waveform with 1 μHz of resolution and 50MHz of wideband frequency. The FGA5050 can be used in wide application such as "Voltage variation test for Automotive Electronic Components", "ECU false signal source", "Charge-Discharge test for the rechargeable battery", "Ripple super-impose test" and it can be used as the trigger signal for the various type of test system.
Further more, three types of interface, LAN / USB / GPIB* are equipped with the FGA5050 as standard feature, it applies for automated test along with manual operation.
*Only available in Model FGA5050GC
Features
- Wide band frequency
Sine waveform : 1μHz to 50MHz
Square waveform : 1μHz to 25MHz - Sine waveform, Square waveform, Ramp waveform, Triangle waveform, Pulse waveform, Noise waveform, DC, Arbitrary waveform output
- Waveform Editor Application Software "WAVEPATT" is included as standard
- Various modulation types
AM, FM, PM, FSK, PWM, Frequency sweep, Burst, External Modulation Input - 16 bits / up to 50MHz pattern out
- 14 bits / 256k-point, 125MSs/s
- 10MHz clock in and out
- Trigger Input and Trigger output (TTL compatible)
- Interface : LAN / USB / GPIB*standard
*Only available in Model FGA5050GC
Application
Voltage variation test
for Automotive Electronic devices The system combined with the FGA5050 and the Bi-polar power supply, it can be used as the "Signal Source" for the "Voltage variation test of the automotive electronic components" complied to the ISO standard and other manufacturer's standard.
Measurement of the output impedance of the power supply
The system combined with the FGA5050, electronic load, and multi-meter, it can be used as the "Reference AC Signal" for the "Impedance measurement of power supply output".
Lineup
| Model | Specification |
|---|---|
| FGA5050 | 50MHz Function generator equipped with the arbitrary waveform function, Sine waveform, Square waveform, Ramp waveform, Triangle waveform, Pulse waveform, Noise waveform, DC, Arbitrary waveform output, Waveform Editor Application Software "WAVEPATT" is included as standard, Various modulation types(AM, FM, PM, FSK, PWM, Frequency sweep, Burst, External Modulation Input), Trigger Input and Trigger output (TTL), Interface : LAN / USB as standard |
| FGA5050GC | 50MHz Function generator equipped with the arbitrary waveform function, Sine waveform, Square waveform, Ramp waveform, Triangle waveform, Pulse waveform, Noise waveform, DC, Arbitrary waveform output, Waveform Editor Application Software "WAVEPATT" is included as standard, Various modulation types(AM, FM, PM, FSK, PWM, Frequency sweep, Burst, External Modulation Input), Trigger Input and Trigger output (TTL), Interface : LAN / USB / GPIB as standard |
