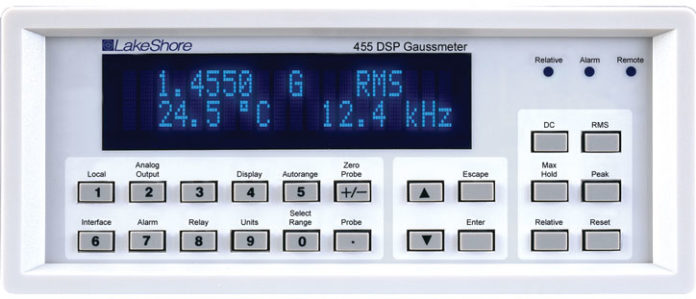

Lake Shore Cryotronics Model 455 DSP Gaussmeter

The Model 455 digital signal processing (DSP) gaussmeter combines the technical advantages of DSP technology with many advanced features at a moderate price. DSP technology creates a solid foundation for accurate, stable, and repeatable field measurements. Advanced features including DC to 20 kHz AC frequency response, peak field detection to 50 µs pulse widths, DC accuracy of 0.075%, and up to 5¾ digits of display resolution make the Model 455 ideal for both industrial and research applications. For added functionality and value, the Model 455 includes a standard Lake Shore Hall probe.

• Field ranges from 35 mG to 350 kG
• DC measurement resolution to 0.02 mG
• Basic DC accuracy of ±0.075%
• DC to 20 kHz AC frequency range
• AC narrow and wide band modes
• Standard and custom Hall probes available
• Standard probe included
• Standard and custom probes available
