Key Facts
Simultaneous multitechnology measurements in a single drive test
Includes WCDMA, GSM, CDMA2000® 1xEV-DO and CW
3G multicarrier use for demodulating broadcast information
Spectrum measurements with the RF power scan option
Low weight and low power consumption: ultra-portable
Perfect for indoor and outdoor use
Features & Benefits
Fastest WCDMA PN scan with 50 Hz
WCDMA PN scanning with up to 20 ms per measurement (50 Hz) in high speed mode
GSM network scanning with up to 10 ms per channel (100 Hz)
CDMA PN scanning with up to 100 ms per measurement (10 Hz)
Analog CW power measurements with up to 1.6 ms per measurement (fulfilling Lee criterion even at high speeds)
Multitechnology measurements in a single drive test between 80 MHz and 3 GHz
Parallel operation of WCDMA PN scan, CDMA2000® PN scan, and GSM network scan
Wideband RF frontend covering all bands for every R&S®TSMQ type
WCDMA PN scanner for bands I to IX with user-defined 200 kHz resolution
GSM network scanner for GSM 450/850/900/1700/1800/1900, GSM-E, GSM-R
CDMA2000®1x PN scanner (SR1 band classes 1 to 10, including US Cellular, PCS 1900, European 450)
RF receiver for power measurements from 80 MHz to 3 GHz
Multicarrier use and broadcast information demodulation
12 carriers in parallel in WCDMA/CDMA2000®
Inclusion of broadcast information decoding (SIB 1-18 for WCDMA, MCC/MNC/LAC/CI/BSIC for GSM)
Measurement of GSM and WCDMA neighborhoods in parallel
Neighborhood analysis with just one receiver
Low weight and low power consumption
Solid, RF-shielded case
Low power consumption: typ. 8 W
Compact: 150 mm × 80 mm × 170 mm (5.51 in × 3.15 in × 6.69 in)
Low weight: 1.5 kg (3.31 lb)
Ideal as backpack system and for indoor applications
Multiple technologies in parallel
Neighborhood analysis in one unit
Benchmarking
Competitor analysis for free
Reduced measurement time and costs
Unsurpassed performance
Best accuracy even at high driving speed
Time-saving tests
All-in-one solution
All options included
No further investments needed
Wideband receiver
One unit covers all bands
Together with R&S®ROMES software
Reduced startup time
Powerful optimization applications
Modular hardware and software
Requirements-specific purchase
Backpack concept
Easy indoor measurements with unrestricted performance
Brief Description

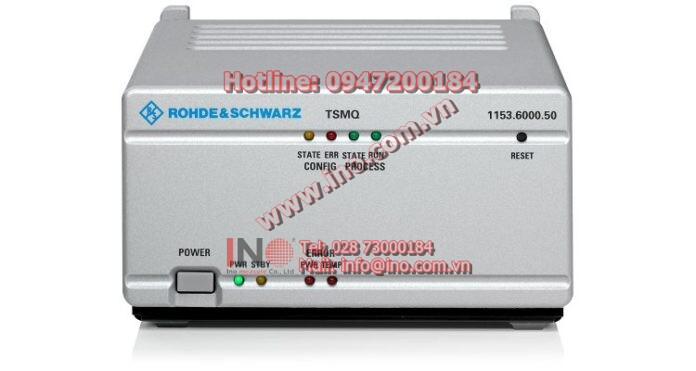

The R&S®TSMQ Radio Network Analyzer provides unmatched capabilities for network analysis and optimization. The distinctive, compact-sized R&S®TSMQ allows WCDMA PN scanning, GSM network scanning, and CDMA2000® 1xEV-DO PN scanning simultaneously and with unsurpassed performance. In addition, analog RF power level measurements (CW) are supported. The wideband RF frontend offers maximum measuring flexibility in all frequency bands irrespective of the standard involved.
In combination with the R&S®ROMES software, the R&S®TSMQ is a powerful instrument for cellular network optimization. Neighborhood analysis is now possible with just one receiver. Plus, the R&S®TSMQ can measure two or three technologies in parallel and monitor other networks during a single drive test. Thus, network operators are always aware of the quality of their entire network as well as of the quality of competitor networks.
The analyzer's low weight and low power consumption allow easy indoor use as a backpack system with a battery power supply. The mobile network characteristics of pedestrian malls, train stations, or shopping centers can be detected at the same quality as with drive-test vehicles.
Specifications
General RF data
RF range
80 MHz to 3 GHz
Noise figure
f ≤ 2.2 GHz, PreAmp On
typ. 10 dB
Ref. frequency aging
1 ppm/year
Ref. frequency temperature drift
0 °C to 30 °C
2 ppm
30 °C to 40 °C
additional 2 ppm/10 °C
IP3
PreAmp On
typ. –9 dBm
PreAmp Off
typ. +3 dBm
1dB compression point
–15 dBm
WCDMA
Bands
WCDMA bands I to IX and user-defined (200 kHz resolution)
Pilot scan
up to 512 pilot channels
Multifrequency scan
max. 12 carriers
IF bandwidth
4.12 MHz
Measurement rate
single mode
HS: variable 1 Hz to 50 Hz HD: 5 Hz UHS: 333
dual mode
HS: variable 1 Hz to 10 Hz HD: 2 Hz
triple mode
HS: variable 1 Hz to 5 Hz HD: 1 Hz
Power measurement dynamic range
–114 dBm to –20 dBm
Power measurement accuracy
–114 dBm to –20 dBm
Power measurement accuracy
typ. <1.5 dB (Ec/Io) with Ec/Io > –12 dB typ. <1 dB (RSCP)
