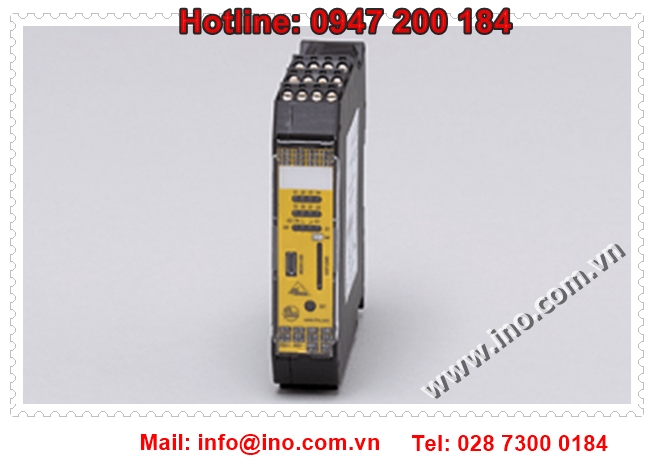

Safety Monitor / 2 channel PNP ( AC041S )

 Product characteristics

AS-i safety monitor

Screw terminal

2 safe semi-conductor outputs

SIL 3 to EN 62061, IEC 61508 /
SIL 3 and EN ISO 13849 – 1 / PL e

Chip card to save the configuration data

Configuration and setup by configuration software ASIMON V3 G2

USB 2.0 interface

Chip card and Combicon screw terminals supplied with the device

 Electrical data

Operating voltage [V]

24 DC

 Outputs

Max. current load per output [mA]

500

Semi-conductor outputs

2

 Environment

Ambient temperature [°C]

0…55

Protection

IP 20

 AS-i classification

AS-i profile

S-7.5.5

I/O configuration [hex]

7

ID code [Hex]

5.5

AS-i interface

1

 Mechanical data

Service button

yes

Weight [kg]

0.232

 Electrical connection

Connection

Combicon connector with screw terminals

 Accessories

Accessories (included)

Chip card; Combicon connector with screw terminals
