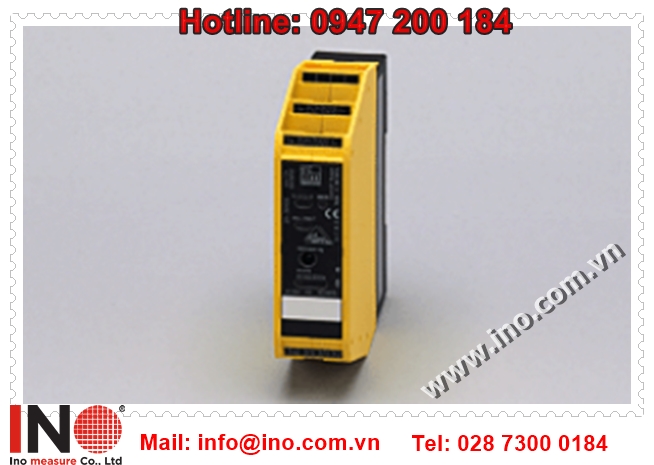

SmartLine Module 2SO IP20 ( AC030S )

 Product characteristics

Safe active AS-i output module

Mounting on DIN rail

Combicon connection

SIL 3 to EN 62061, IEC 61508 /
SIL 3 and EN ISO 13849 – 1 / PL e

for the safe triggering of actuators

Complies with the requirements:
EN ISO 13849-1: PL e
IEC 61508: SIL 3

 Electrical data

Electrical design

4 non-safe inputs
2 non-safe LED outputs
1 safe relay output

Operating voltage [V]

26.5…31.6 DC; "supply class 2" to cULus.

Current consumption [mA]

≤ 200

Max. current load per module [mA]

3000

 Inputs

Digital

Circuit

DC PNP

Voltage range [V]

18…30 DC

Short-circuit detection

ja

 Outputs

Relay output

1

Cross-bridging detection

no

External voltage supply

yes

 Environment

Ambient temperature [°C]

-25…55

Protection

IP 20

 Tests / approvals

EMC

EN 50295

 Safety classification

Mission time TM [h]

175200, (20 years)

PFD

2.0 x 10E-5

PFH

3.3 x 10E-9 / h

 AS-i classification

AS-i version

2.1

Extended addressing mode possible

yes

AS-i profile

S-7.A.E

I/O configuration [hex]

7

ID code [Hex]

A.E

AS-i certificate

in preparation

 Mechanical data

Housing materials

PA

Weight [kg]

0.242

 Displays / operating elements

Operation LED

green

Error LED

Red

Function display LED

yellow

 Electrical connection

Connection

Combicon

Wiring

 Remarks

Remarks
