Tinker & Rasor – Portable Copper-Copper / Sulfate Reference Electrodes (Model: 6/8)

Copper-Copper/Sulfate

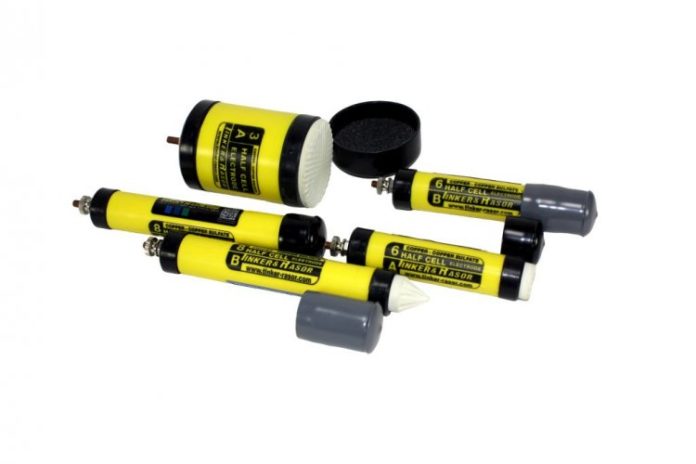

Models:

• 2-A Pencil Cell
• 3-A For Concrete
• 6-A, 8-A Flat Tips
• 6-B, 8-B Pointed Tips

Description

Tinker & Rasor offers a complete line of Copper-Copper Sulfate Half Cell Reference Electrodes. All Tinker & Rasor HALF CELLS are made from the most durable materials available, to withstand years of harsh, even severe field use! These fully "serviceable" Half Cells can be recharged to assure accurate readings for many years. Replacement "Tips" and supplies are available from stock.

"A" tip vs. "B" tip

The two standard tips available are the "A" Flat Tip and the "B" Pointed Tip.
Both the Flat and Pointed tips are made to maximize the total surface area of the tip to ensure good contact area with the electrolyte. Mainly a user preference, there is no performance difference between the two types of tip. The "A" Flat tip may be more versatile, as a flat surface can be useful on a variety of electrolytes, such as soils, liquids and concrete.
The "B" Pointed tip has a cone shape which can be easily buried in soils to ensure good contact with the electrolyte.
While the body of the half cell is printed with the tip type, all parts are interchangeable and an "A" or "B" tip can be put on any of the Models 6 and 8 reference electrodes.

 Model 6 vs. Model 8

Tinker & Rasor offers the Model 6-A, 6-B and the Model 8-A and 8-B. The difference is in the length of the half cell only. The overall length of the 6 Model is 6" and the 8 Model is 8"
The Model 8 half cells contain more copper rod, more copper sulfate crystals and more water due to the larger volume of the tube.

Specifications:

• High purity copper rod
• Copper-Sulfate crystals

Recommendations:

• Use with most CP Voltmeters
• Half Cell models 3,6 & 8 screw into back of
• T&R CPV-2 CP Voltmeter
• T&R CPV-4 CP Voltmeter

Dimensions:

• 2-A:  3/8" x 5-3/4"
• 3-A:  3" x 5"
• 6-A: 1-1/4" x 6"
• 6-B: 1-1/4" x 7"
• 8-A: 1-1/4" x 8"
• 8-B: 1-1/4" x 9"

 Temperature Data: See Data Page for Temperature Correction Information
