Tổng quan về thiết bị đo đa năng Sanwa PC700 Multimeter – Review: Sanwa PC7000 Multimeter Pt 1

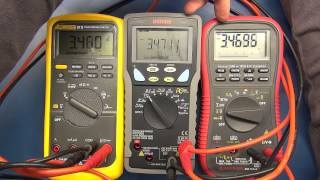

 This is a review of the Sanwa PC7000 Multimeter.

Meter details:

■4 to 4.5 digits 50000 count
(Selectable 5-4 / 5 digits 500000 count for DCV)
■Dual Display shows voltage/current and its
frequency, and AC components and DC
components of voltage/current
■AC True RMS
■Low-pass filter for variable frequency drive(VFD) 　circuit
■Current (mA / μA) %4-20mA measurement
■Capture (peak hold) 0.8ms in duration
■MAX, MIN, AVE recording mode
■K type temperature -50℃〜1000℃
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard accessory.
■Frequency measurement (AC sine wave only)
■Logic frequency measurement, duty cycle
measurement
■Conductance measurement
■Dual display with backlight
■Data hold, Range hold
■Relative value
■Auto power saving mode (30min.) (cancelable)
■Optical Link USB interface (optional)
Display : numeral display 50000 & 500000 selectable, bar graph 41 segments
Sampling rate : 5 times/sec. for 50000 count, 1.25 times/sec. for 500000 count, 60 times/sec. for bar graph
Battery life : Approx. 100h (alkaline battery) at DCV range
